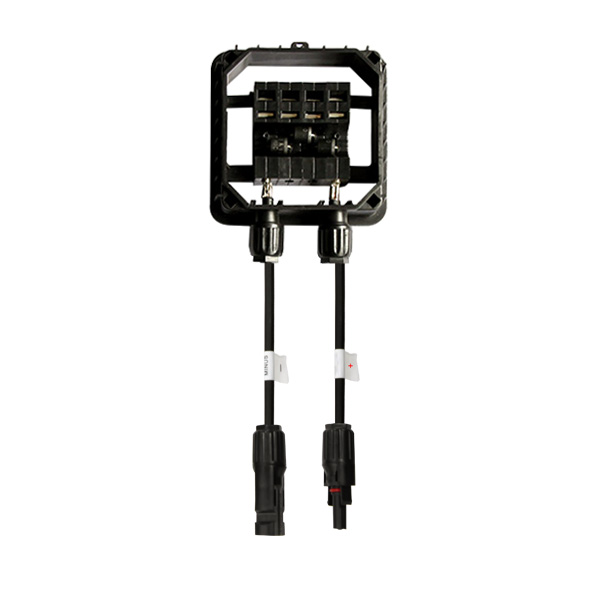

JB001

Rated Voltag	1000V DC
Rated Current	10A
Diodes	15SQ050 (3Pcs)
Protection Degree	IP65
Terminals	4PCS
Power Range	150-250Watts
Application Class (Class A/B/C	B
Pollution Degree (1/2/3/4)	3
Operating Temperature Range	- 40°~+80°
Flame Class	UL94-V0
Standard	DIN V VDE V 0126--5:2008
Authentication	Rohs
Contact Resistance	< 0.5mΩ
Terminals Material	Mental
Insulation Material	PPO
Cable	4mm²
Connector	MC4
Unit	949429mm
